Action-space noise
Exploration is attached to the executed action, avoiding dilution.
Structured Action-Space
Exploration for Flow-Based VLAs
Read the paper (arXiv) ↗

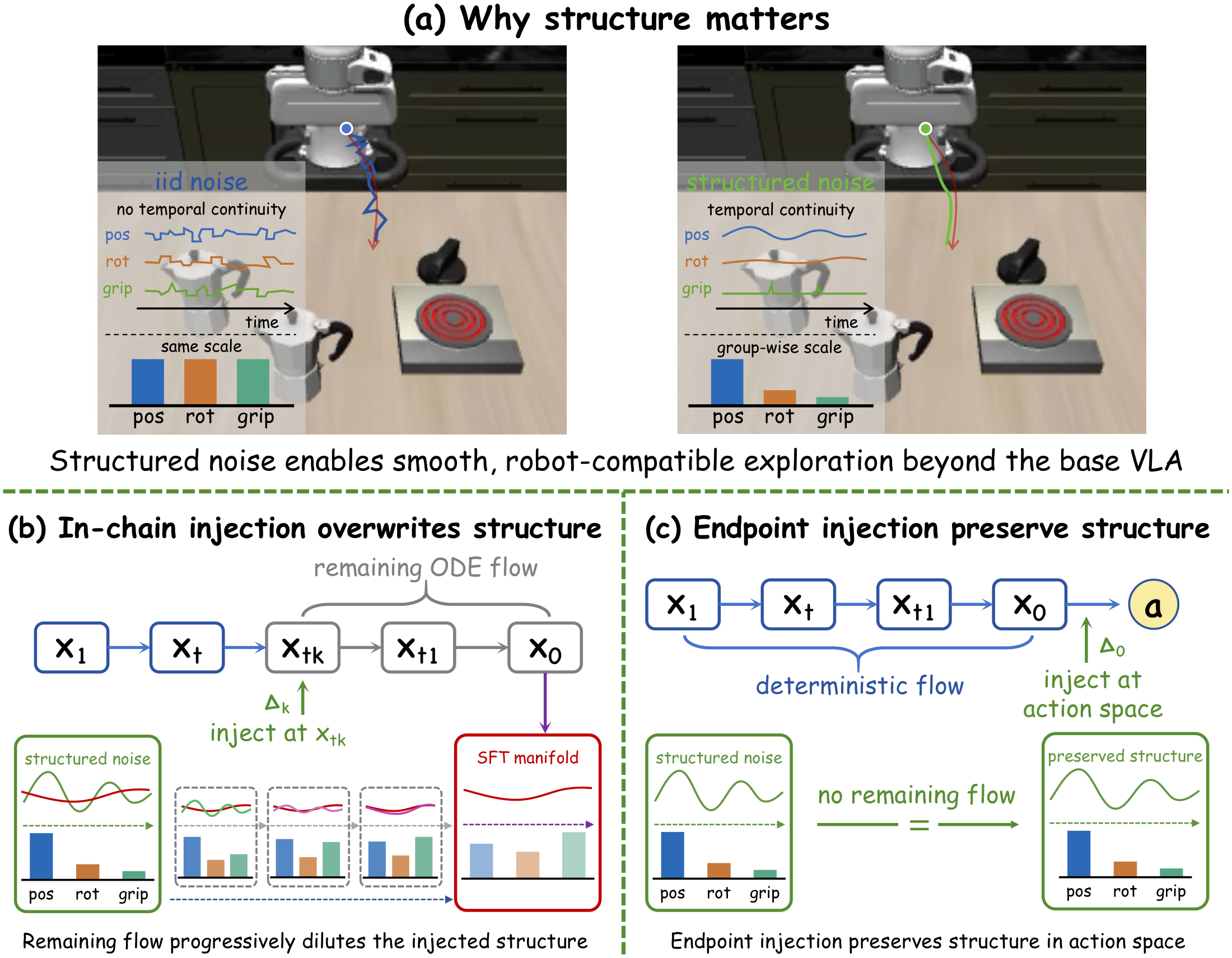

01 / Motivation
Exploration should preserve the structure of robot actions.
Flow-based vision-language-action models are powerful robot policies, but their usual reinforcement-learning exploration lives inside a multi-step denoising chain. That makes it difficult to control the actions that are ultimately executed.
We identify structured noise dilution: temporal correlations and action-group scales injected partway through the chain can be weakened by the remaining denoising steps. StructRL instead places exploration directly at the action output, where its intended structure reaches the robot intact.
02 / Method
Deterministic decoding.
Structured exploration.

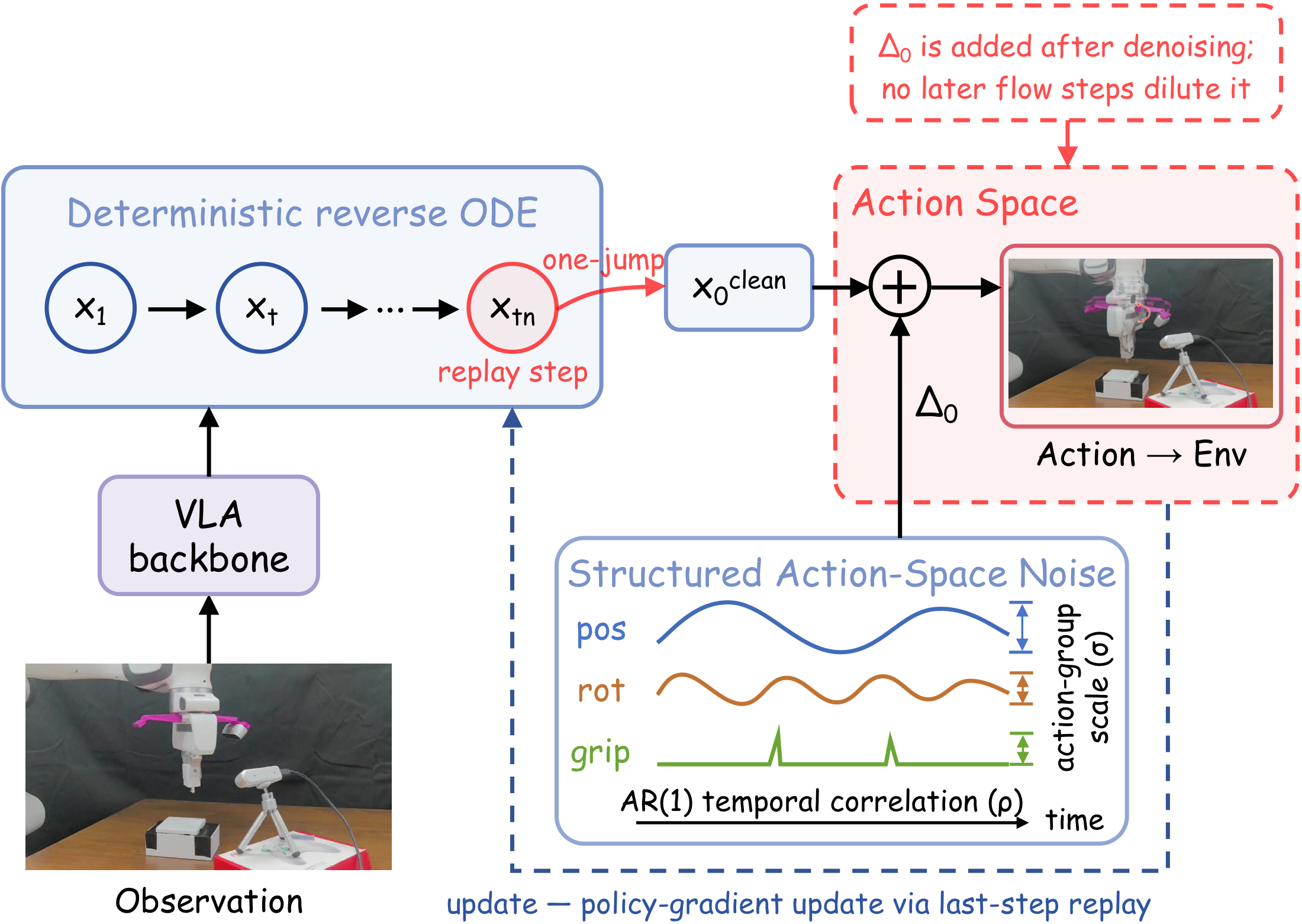

StructRL decodes a clean action chunk with a deterministic ODE, then adds noise directly in action space. Fixed AR(1) correlation smooths the noise over the chunk. The decoder's terminal features predict a scale for each action dimension and time step, within bounds set for position, rotation, and gripper controls.

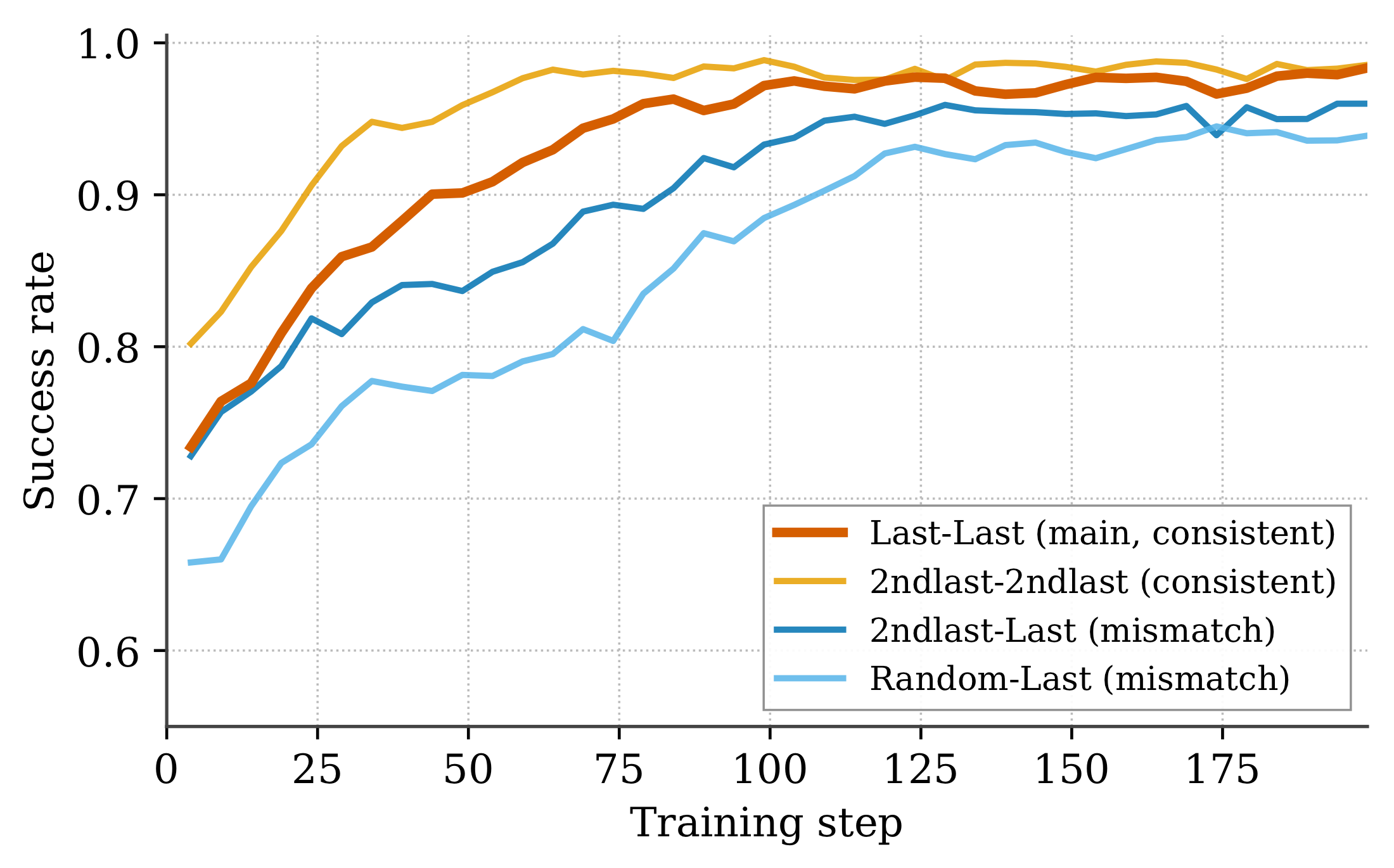

Terminal replay supplies a tractable policy-gradient signal to the flow decoder without assigning likelihoods to intermediate denoising states. The default setting replays the last denoising step.
AR(1) correlation
Smooth noise matches the temporal structure of action chunks.
Group-aware scales
State-conditioned scales are bounded separately for position, rotation, and gripper controls.
Terminal replay
The final denoising steps provide an efficient learning signal.
03 / Simulation Results
Action-space exploration improves OOD performance; structured noise speeds learning.
We evaluate StructRL on LIBERO, ManiSkill, and CALVIN across three flow-based VLA backbones. Green marks StructRL; bold marks the best result in each column, including ties.
Table 1
LIBERO success rate (%)
| Backbone | Method | Spatial | Object | Goal | Long | Avg. |
|---|---|---|---|---|---|---|
| GR00T N1.5 | Few-shot SFT | 41.4 | 58.6 | 48.2 | 61.9 | 52.5 |
| πRL (Flow-SDE + PPO) | 96.6 | 100.0 | 93.8 | 95.6 | 96.5 | |
| Baseline | 96.2 | 99.4 | 91.8 | 95.6 | 95.8 | |
| StructRL | 99.2 | 100.0 | 97.6 | 99.0 | 99.0 | |
| π0 | Few-shot SFT | 65.3 | 64.4 | 49.8 | 51.2 | 57.6 |
| πRL (Flow-SDE + PPO) | 98.4 | 99.4 | 96.2 | 90.2 | 96.0 | |
| π-StepNFT | 93.5 | 98.0 | 83.7 | 86.7 | 90.5 | |
| Baseline | 98.8 | 99.0 | 97.2 | 90.2 | 96.3 | |
| StructRL | 98.8 | 99.8 | 98.4 | 91.8 | 97.2 | |
| π0.5 | Few-shot SFT | 84.6 | 95.4 | 84.6 | 43.9 | 77.1 |
| πRL (Flow-SDE + PPO) | 99.6 | 100.0 | 98.8 | 93.0 | 97.9 | |
| π-StepNFT | 97.8 | 100.0 | 98.2 | 79.8 | 94.0 | |
| Baseline | 99.4 | 100.0 | 93.8 | 86.0 | 94.8 | |
| StructRL | 99.6 | 100.0 | 98.8 | 90.2 | 97.2 |
Table 2
ManiSkill success rate (%)
| Backbone | Method | IND | Vision | Semantic | Execution | OOD Avg. |
|---|---|---|---|---|---|---|
| π0 | SFT | 38.4 | 32.6 | 8.4 | 13.2 | 18.1 |
| πRL (Flow-SDE + PPO) | 78.8 | 61.1 | 25.4 | 31.5 | 39.3 | |
| π-StepNFT | 79.2 | 69.1 | 49.1 | 33.1 | 50.4 | |
| Baseline | 84.1 | 79.4 | 63.3 | 59.1 | 67.3 | |
| StructRL | 87.8 | 80.0 | 64.2 | 56.2 | 66.8 | |
| π0.5 | SFT | 40.1 | 38.8 | 16.6 | 22.3 | 25.9 |
| πRL (Flow-SDE + PPO) | 90.9 | 68.0 | 34.5 | 45.4 | 49.3 | |
| π-StepNFT | 85.4 | 76.9 | 56.6 | 45.1 | 59.5 | |
| Baseline | 85.9 | 76.2 | 62.2 | 59.4 | 65.9 | |
| StructRL | 90.9 | 78.3 | 68.4 | 64.2 | 70.3 |
Table 3 · Appendix
CALVIN long-horizon chaining (π0.5; success fraction)
| Method | Len1 | Len2 | Len3 | Len4 | Len5 | Avg. length |
|---|---|---|---|---|---|---|
| SFT | 0.927 | 0.843 | 0.767 | 0.688 | 0.613 | 3.838 |
| πRL (Flow-SDE + PPO) | 0.997 | 0.982 | 0.958 | 0.910 | 0.870 | 4.717 |
| πRL (Flow-Noise + PPO) | 0.996 | 0.976 | 0.939 | 0.896 | 0.845 | 4.652 |
| Baseline | 0.998 | 0.990 | 0.964 | 0.929 | 0.868 | 4.749 |
| StructRL | 1.000 | 0.993 | 0.968 | 0.934 | 0.880 | 4.775 |
04 / Real-World Experiments
From ten demonstrations to reliable real-world manipulation.
We initialize each policy with SFT on 10 demonstrations, with 0% success over 25 trials before online RL. We then continue training with StructRL + AWAC and compare against Gaussian action-space exploration.
10 demonstrations→SFT→StructRL + AWAC
Task 01
Pick Banana
0%→84%
After 60 minutes, StructRL succeeds in 21/25 trials (84%); the Gaussian baseline succeeds in 14/25 (56%).
Task 02
Plug Charger In
≈30 minto stable success
The SFT policy starts at 0% success. StructRL reaches stable, fully successful behavior after about 30 minutes; the Gaussian baseline takes about 35 minutes.
